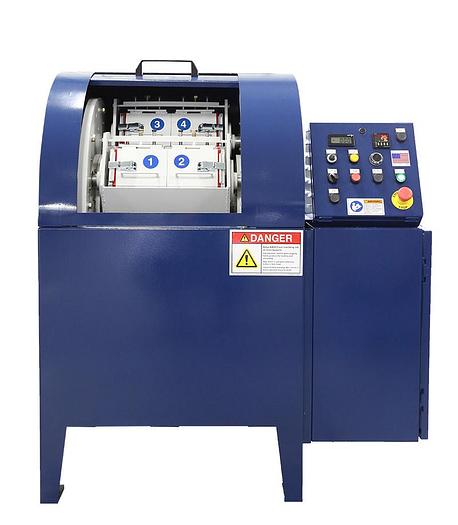

GCB-40

GCB-40

Contact us for price

orCall (708) 343 6900

Description


GCB-40 Machine Specs



Main Motor Hp

·       3 HP Leeson Brand



Voltage

·       230/460 Three Phase, 60 hertz (Single phase available upon request)



Total Capacity

·       1-1.42 cubic feet



Variable Speed Drive

·       Allen Bradley PowerFlex 525



Approximate Shipping Weight

·       1300 lbs.



Overall Dimensions

·       47"W x 38"D x 49"H



Machine Construction

·       Heavy duty steel

·       All welded construction

·       Reinforced, gusseted, and welded to maximum strength



Barrel Construction

·       Various size barrels available (See Below)

·       Removable lids

·       Lined with polyurethane 1/4” min. thickness

·       Entire barrel can be removed from machine to load/unload media and parts.



Control Panel

·       NEMA 12 enclosed panel

·       UL Certification (Available upon request)

·       Allen Bradley buttons and switches

·       0-100 Hour cycle timer mounted on panel

·       Power jog of turret



Brake

·       Automatically stops the turret when a stop is activated or cycle is completed

·       Activated if door is opened

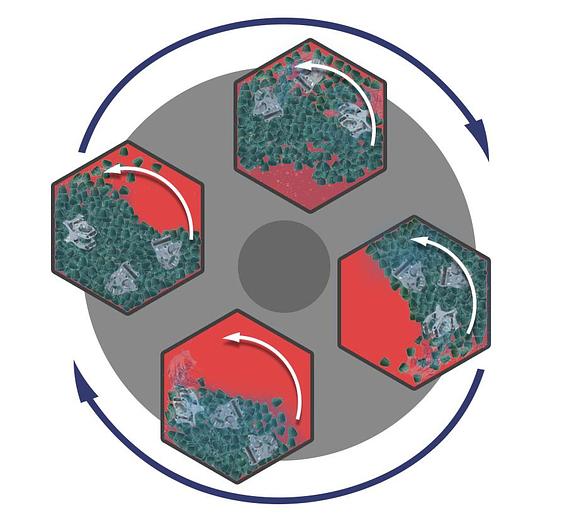

Barrel Options



Two-Sided Barrels


·       Can use dividers Non-removable liners

·       Inner Dimensions- 8.75"x5.75”






Bolted-End Barrels


·       Inner Dimensions- 11"x5.875"

·       Heavier Duty with Removeable Liners






Latched-End Barrels


·       Inner Dimensions- 12.5”x6.875”

·       Highest Capacity with removable Liners






Two Half Barrels-


·       Inner Dimensions- 5.375"x6.875"

·       8 Total with Removable Liners (2 per cradle)








Specifications

ManufacturerGiant Finishing
ModelGCB-40
ConditionNew
