GB-3ES

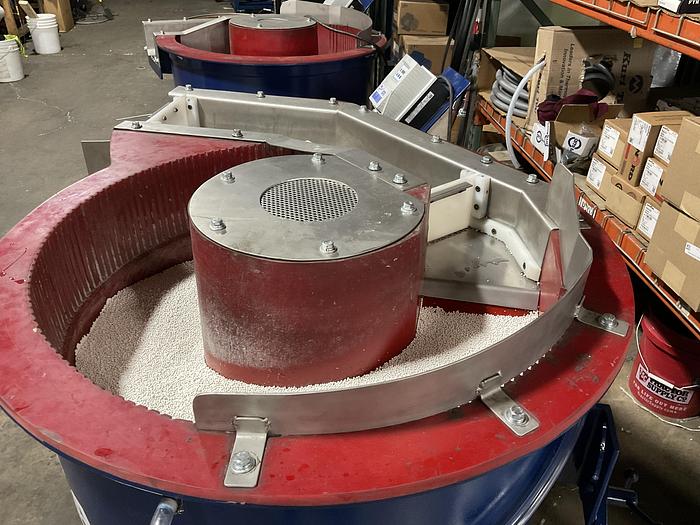

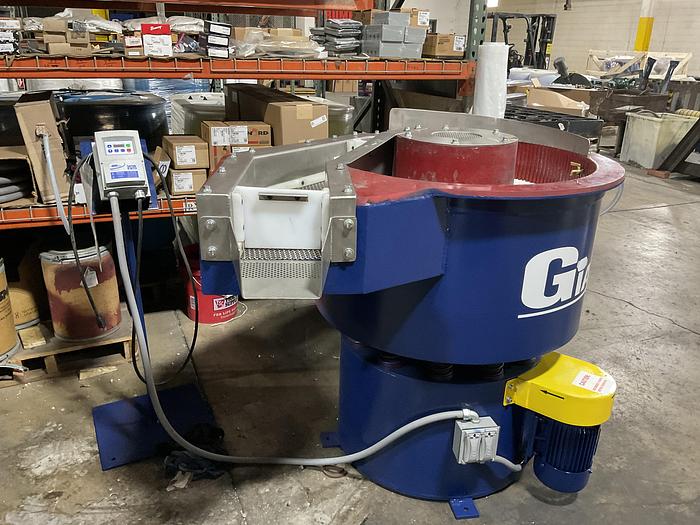

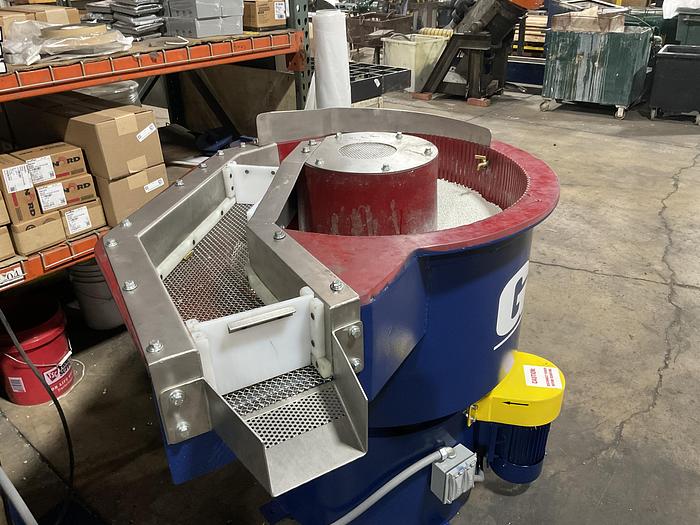

Giant Finishing Model GB-3ES Spiral Bowl with Internal Separation Vibratory Deburring and Finishing Machine

SPECIFICATIONS:

Cubic Feet Process Capacity………………………………………………………………………3

Horsepower Motor.......................………………………………………………......................1 1/2

Polyurethane Lining Thickness………………………...………………………………………3/4"

Shipping Weight…………………………………………………………………………..1160 lbs

Floor Space………………………………………….……………………………………12 Sq. Ft

Maximum Load Capacity………………………….……………………………………….600 lbs

Bowl Diameter……………………………………………………………………………….…39"

Unload Height…………………………………….……………………………………………37"

Channel Width - After Lining………………..……………………………………….………….9"

Channel Depth – Average………………………………………………….…………..………10"

Overall Height………………………………….……………………….………………………42"

Overall Depth…………………………………….…………………….……………………….46"

Load Height……………………………………………………..………………………………42"

Drive unit: 1-1/2 H.P. T.E.F.C. motor, 115V, 1 PH, 60 cycle

STANDARD COMPONENTS:

·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot peened for maximum durability and lined with urethane.

·      PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·      HIGH EFFICIENCY MOTORS

·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·      TUNED COIL SPRING TUB SUSPENSION

·      PARTS DISCHARGE RAMP with locking lever.

·      REMOVABLE CAST URETHANE SCREEN

·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·      COMPOUND INLET PIPING

·      REMOVABLE CAST URETHANE DRAIN PLUG

·      ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.
