Factory Certified GO-15

Factory Certified GO-15

Contact us for price

orCall (708) 343 6900

Description

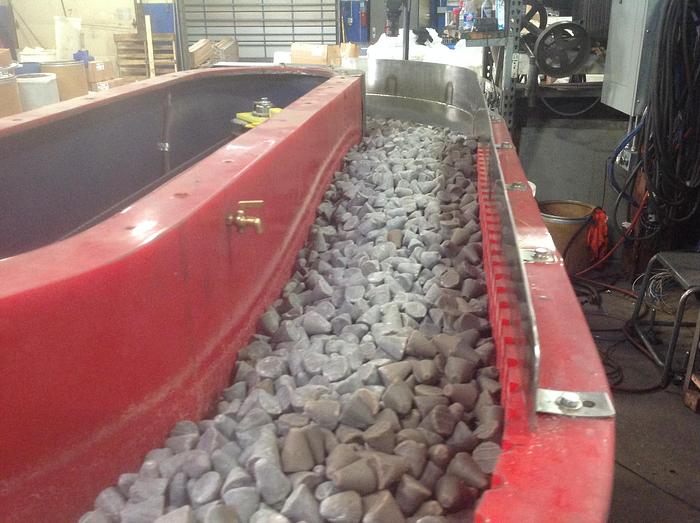

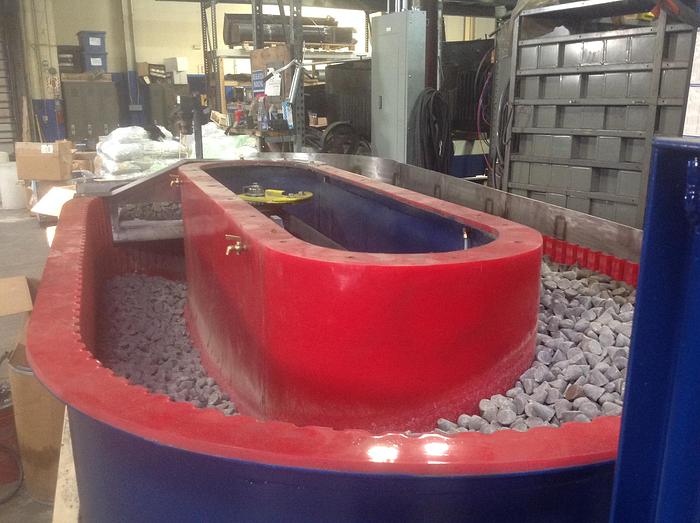

Giant Finishing Model GO-15 Spiral Oval Bowl with Internal Separation Vibratory Deburring and Finishing Machine with capability to run steel media as described and specified below.



SPECIFICATIONS:



Cubic Feet Process Capacity…………………………………………………….……15



Horsepower Motor………………………………………………………….…………15



Polyurethane Lining Thickness.………………………………...……………………1"



Shipping Weight……………………………………………………………………….8,040 lbs



Floor Space…………………………………………………………………………....42 Sq. Ft



Maximum Load Capacity………………………………………..................................4,500 lbs



Unload Height……………………………………………...........................................44"



Tub  Length……………………………………………..............................................109 1/4"



Tub  Width………………………………..…….........................................................55 1/4"



Channel Width  (after Lining)…………………………………….……….12 3/4"  X 18FT



Channel Depth – Average…….………………………………..................................16 1/2"

.

Overall Height…………………………………………….........................................57"



Overall Depth...............................……………………………………………...........70"



Overall Length.....................……………………………………………...................124"



Load Height........................……………………………………………....................52"



STANDARD COMPONENTS:



·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot peened for maximum durability and lined with urethane.



·      DOUBLE PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shafts.

·      NEMA-12 CONTROL PANEL including 0-6 hour process timer and lapsed time recorder. Control panel is JIC approved and U.L. listed. Standard voltage: 460/3/60 cycle.



·      DRAIN GUTTER with one main discharge to the drain



·      HIGH EFFICIENCY MOTORS



·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)



·      TUNED COIL SPRING TUB SUSPENSION



·      PARTS DISCHARGE RAMP with locking lever.



·      REMOVABLE CAST URETHANE SCREEN



·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.



·      MEDIA DISCHARGE DOOR



·      COMPOUND INLET PIPING



·      REMOVABLE CAST URETHANE DRAIN PLUG



·      ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.





Specifications

ManufacturerGiant Finishing
ModelGO-15
ConditionRefurbished
