GBB-2

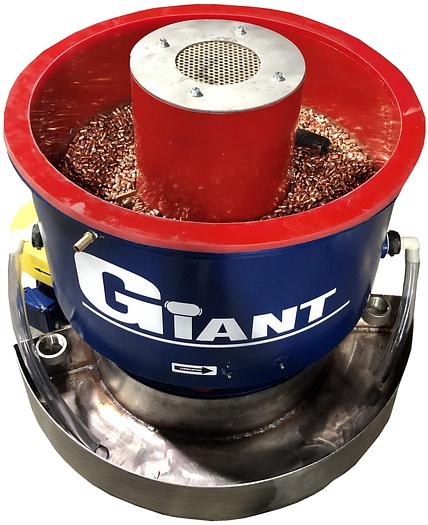

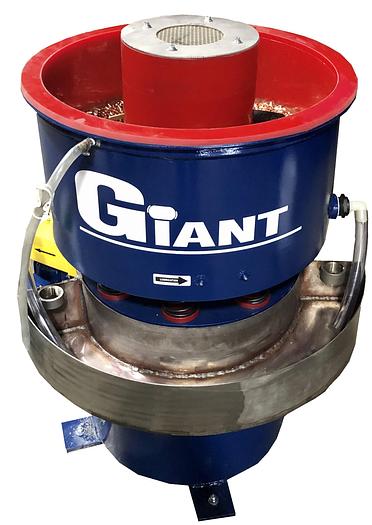

Giant Finishing Model GBB-2 Flat bottom bowl Vibratory Deburring and Finishing Machine

SPECIFICATIONS:

Cubic Feet Process Capacity……………………………………………………………1.5

Horsepower Motor………………………………………………………………………1.5

Polyurethane Lining Thickness…………………………………………………………3/4”

Shipping Weight………………………………………………………………………..820 lbs.

Floor Space……………………………………………………………………………..12 Sq. Ft

Maximum Load Capacity………………………………………………………………600 lbs

Bowl Diameter…………………………………………………………………………28 ½”

Channel Width - After Lining…………………………………………………………6 5/8”

Channel Depth………………………………………………………………………….10"

Overall Height………………………………………………………………………….39"

Overall Depth…………………………………………………………………………..38"

Load Height……………………………………………………………………………36"

Unload Height (air Door option) ………………………………………………………18”

STANDARD COMPONENTS:

·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

·      PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·      HIGH EFFICIENCY MOTORS

·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·      TUNED COIL SPRING TUB SUSPENSION

·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·      COMPOUND INLET PIPING

·       ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.

·      REMOVABLE CAST URETHANE DRAIN PLUG

PRICE, complete as described, painted Giant Blue ready for your field service connections……………………………………………………………$6,950.00
