GBB-4

Giant's Model GBB-4 is a staple for any machine shop making precision parts. The variable speed drive lets you fine tune the machine with the touch of a button whether your running parts with heavy burr or scale that needs to be run aggressively or parts with critical surfaces and tight tolerances that are much more delicate. Machine Specifications below.

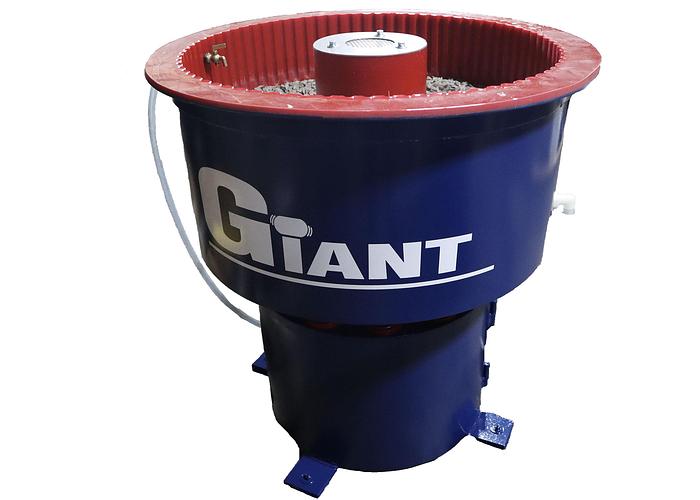

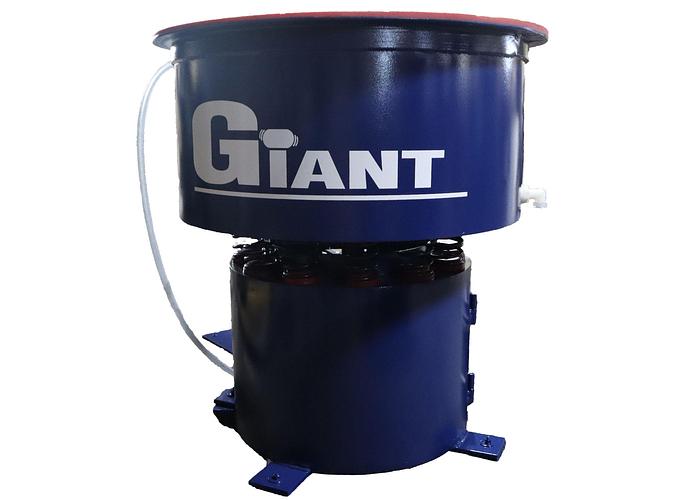

Giant Finishing Model GBB-4 Batch Bowl Vibratory Deburring and Finishing Machine

SPECIFICATIONS:

Cubic Feet Process Capacity                                                                                       3.5

Channel Width (after lining)                                                                                       10 ¾”

Channel Depth                                                                                                             9”

Horsepower Motor                                                                                                      1 1/2

Polyurethane Lining Thickness                                                                                   3/4"

Shipping Weight                                                                                                         1050 lbs.

Floor Space                                                                                                                 12 Sq. Ft

Maximum Load Capacity                                                                                            820 lbs.

Bowl Diameter                                                                                                            37"

Overall Height                                                                                                             40”

Overall Depth                                                                                                              42”

STANDARD COMPONENTS:

·       HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

·       PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·       DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·       HIGH EFFICIENCY MOTOR

·       TUNED COIL SPRING TUB SUSPENSION

·       ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·       COMPOUND INLET PIPING

·       REMOVABLE CAST URETHANE DRAIN PLUG

·       ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.

PRICE, complete as described, painted Giant Blue and ready for your field service connections

 in 115 Volts…………………………………………..............………………………….$ 11,400.00

OPTIONAL EQUIPMENT:

-115/ 1 PHASE/ 60 HZ (Customer to supply their own disconnect)

PRICE..........................................................................$   Standard

-230/ 3 PHASE/ 60 HZ (Customer to supply their own disconnect)

PRICE..........................................................................$   400.00

-460/ 3 PHASE/ 60 HZ input  (Customer to supply their own disconnect)

PRICE..........................................................................$   400.00

CONTROL PANEL - NEMA 12 including 0-1-hour process timer and receptacle.

 Standard  voltage: 230/3PH/60HZ  OR  460/3PH./60HZ.

 Control Panel Disconnect included. Customer to supply their own Feeder Breaker

PRICE..............................................................................................................................$ 2,900.00

NOTE: Electrical controls and components for the herein quoted equipment are of standard design using I.E.C. components and do not represent individual customer requirements.  If special machinery specifications, i.e., electrical controls and/or components do exist, please submit to Giant Finishing, Inc. for evaluation and re-quotation purposes.

OTHER VOLTAGE IS AVAILABLE UPON REQUEST.  CONSULT FACTORY FOR ADDITIONAL CHARGES.

AUTOMATIC PREMIXING COMPOUND SYSTEM designed to mix compound and water into vibratory mass on a continuous basis, to keep parts and media clean during processing. Complete with pump, mixing head, valves, spray headers, drain hoses and 15 gallon drum.

PRICE……..............................................................................................................................$1,750.00

CARTRIDGE AUTOMATIC GREASE SYSTEM for lubrication of the vibrator bearings.

 Consists of a reservoirs with grease and adjustable cycle………………………….……..$1,400.00

SUSPENDED SOUND SUPPRESSOR COVER: ……...................................................$ 3,900.00

AIR OPERATED SUSPENDED SOUND COVER ADD (+) ………………..……$6,200.00

WRAP AROUND SETTLING TANK. 30 gallon kidney shaped settling tank that hugs the base of the machine, great for customers with floor space issues.

PRICE…………………………………………….…………………………………….$ 3,100.00

ST-55 SETTLING TANK powder coated with pull out sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.

 PRICE……………………………………………………………………………..……$2,650.00

ST-55-SS SETTLING TANK stainless steel with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.…...…………………………………………………………………………..…$3,200.00

MANUAL DISCHARGE DUMP DOOR

PRICE……………….…………………………………………………………………….$900.00

AIR DOOR: Pneumatic media discharge door, air valve controlled.

PRICE.....................................................................................................................................$3,200.00

START-UP ASSISTANCE: Giant Finishing will provide start-up assistance at customer facility.  Service includes proper start-up and machine adjustments, operator(s) instruction and preventative maintenance training.

PRICE:           $1750.00 PER DAY PLUS $75.00 PER HOUR TRAVEL TIME

                        AND ACTUAL TRAVEL EXPENSES
