GBB-2ST

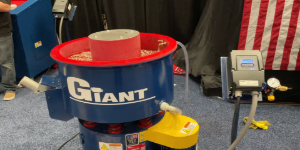

Giant Finishing Model GBB-2ST Flat bottom bowl Vibratory Deburring and Finishing Machine with the capability to run Steel Media

SPECIFICATIONS:

Cubic Feet Process Capacity……………………………………………………………1.5

Horsepower Motor………………………………………………………………………2

Polyurethane Lining Thickness…………………………………………………………3/4”

Shipping Weight………………………………………………………………………..820 lbs.

Floor Space……………………………………………………………………………..12 Sq. Ft

Maximum Load Capacity………………………………………………………………600 lbs

Bowl Diameter…………………………………………………………………………28 ½”

Channel Width - After Lining…………………………………………………………6 5/8”

Channel Depth………………………………………………………………………….10"

Overall Height………………………………………………………………………….39"

Overall Depth…………………………………………………………………………..38"

Load Height……………………………………………………………………………36"

Unload Height (air Door option) ………………………………………………………18”

STANDARD COMPONENTS:

HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

NEMA-12 CONTROL PANEL including 0-6 hour process timer and lapsed time recorder. Control panel is JIC approved and U.L. listed. Standard voltage: 460/3/60 cycle.

OTHER VOLTAGE IS AVAILABLE UPON REQUEST.  CONSULT FACTORY FOR ADDITIONAL CHARGES.

HIGH EFFICIENCY MOTORS

DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

TUNED COIL SPRING TUB SUSPENSION

ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

COMPOUND INLET PIPING

ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.

REMOVABLE CAST URETHANE DRAIN PLUG

PRICE, complete as described, painted Giant Blue ready for your field service connections……………………………………………………………$13,950.00

MADE IN U.S.A.

OPTIONAL EQUIPMENT:

AUTOMATIC PREMIXING COMPOUND SYSTEM designed to mix compound and water into vibratory mass on a continuous basis, to keep parts and media clean during processing.  Complete with pump, mixing head, valves, spray headers, drain hoses and 15 gallon drum.

PRICE…………………………………………………………………………………$1,750.00

MANUAL AUTOMATIC GREASE SYSTEM for lubrication of the vibrator bearings.

 Consists of a reservoirs with grease and adjustable cycle………………………….……..$1,400.00

AUTOMATIC GREASE SYSTEM for lubrication of the vibrator bearings. Consists of a reservoir, air operated pump, injectors and electrical controls. Pump is solenoid activated to provide lubrication only when machine is in operation.

PRICE.............................................................................................................................$ 3,950.00

AUTOMATIC GREASE SYSTEM WITH GLC 4400 CONTROLLER: Consists of 6 lb. grease reservoir, air operated pump, series progressive lubricant divider valves, and electrical controls.

GLC CONTROLLER capable of initiating lubrication cycles based on machine on-time, and monitoring capabilities allowing fault feedback in the event of lack of flow through the divider valve.

Potential causes:

·      Pump failure due to high or low pressure

·      Blockage in the lube delivery lines

·      Low lubricant level

PRICE.............................................................................................................................$ 8,900.00

SUSPENDED SOUND SUPPRESSOR COVER:…………………………………$4,900.00

AIR OPERATED SUSPENDED SOUND COVER ADD (+) ………………..……$6,200.00

ST-55 SETTLING TANK powder coated with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.

 PRICE……………………………………………………………………………..…$ 2,650.00

ST-55-SS SETTLING TANK stainless steel with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.…...…………………………………………………………………………..…$ 3,500.00

WRAP AROUND SETTLING TANK. 10 gallon kidney shaped settling tank that hugs the base of the machine, great for customers with floor space issues.

PRICE………………………………………………………………………………….$  2,900.00

MEDIA/PARTS DISCHARGE DOOR……………………………………………$ 900.00

AIR DOOR: Pneumatic media discharge door, air valve controlled.………………..$ 3,900.00

START-UP ASSISTANCE: Giant Finishing will provide start-up assistance at customer’s facility.  Service includes proper start-up and machine adjustments, operator(s) instruction and preventative maintenance training.

PRICE:          $1700.00 PER DAY PLUS $75.00 PER HOUR TRAVEL TIME

AND ACTUAL TRAVEL EXPENSES
