GB-10

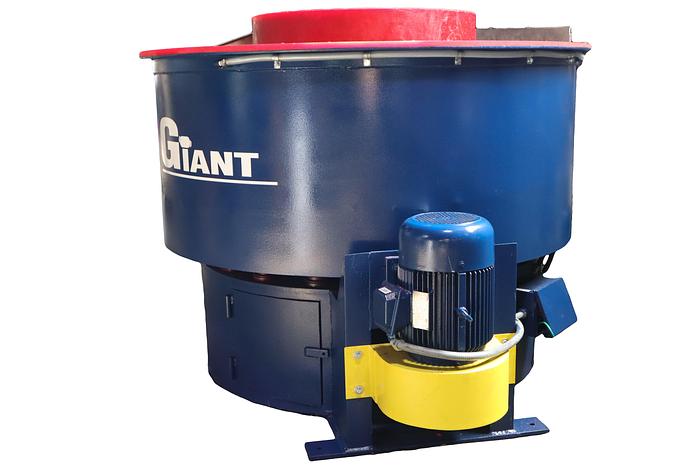

Giant Finishing Model GB-10 Spiral Bowl with Internal Separation Vibratory Deburring and Finishing Machine

SPECIFICATIONS:

Cubic Feet Process Capacity………………………………………………………………..........10

Horsepower Motor…………………………………………………………………………........7.5

Polyurethane Lining Thickness1…………………………………………………………............1"

Shipping Weight…………………………………………………………………………...3498 lbs

Floor Space………………………………………………………………………………..31 Sq. Ft

Maximum Load Capacity………………………………………………………………….2000 lbs

Bowl Diameter…………………………………………………………………………….........65"

Unload Height……………………………………………………………………………..........39"

Channel Width - After Lining………………………………………………………….............13"

Channel Depth – Average………………………………………………………………......14 1/2"

Overall Height……………………………………………………………………………..........55"

Overall Depth……………………………………………………………………………...........65"

Load Height………………………………………………………………………………....48 1/2”

STANDARD COMPONENTS:

·      HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with urethane.

·      PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

·      NEMA-12 CONTROL PANEL including 0-1 hour process timer and lapsed time recorder. Control panel is JIC approved and U.L. listed. Standard voltage: 460/3/60 cycle

·      HIGH EFFICIENCY MOTORS

·      DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

·      TUNED COIL SPRING TUB SUSPENSION

·      PARTS DISCHARGE RAMP with locking lever.

·      REMOVABLE CAST URETHANE SCREEN

·      ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

·      MEDIA DISCHARGE DOOR

·      COMPOUND INLET PIPING

·      REMOVABLE CAST URETHANE DRAIN PLUG

·      ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency.  Push buttons for increase or decrease of the vibration frequency are in the main panel.  A digital tachometer provides a read-out of machine RPM.

MADE IN U.S.A.

OPTIONAL EQUIPMENT:

AUTOMATIC PREMIXING COMPOUND SYSTEM designed to mix compound and water into vibratory mass on a continuous basis, to keep parts and media clean during processing. Complete with pump, mixing head, valves, spray headers, drain hoses and 15 gallon drum.

AUTOMATIC GREASE SYSTEM for lubrication of the vibrator bearings. Consists of a reservoir, air operated pump, injectors and electrical controls. Pump is solenoid activated to provide lubrication only when machine is in operation.

AUTOMATIC GREASE SYSTEM WITH GLC 4400 CONTROLLER: Consists of 6 lb. grease reservoir, air operated pump, series progressive lubricant divider valves, and electrical controls.

GLC CONTROLLER capable of initiating lubrication cycles based on machine on-time, and monitoring capabilities allowing fault feedback in the event of lack of flow through the divider valve.

Potential causes:

·      Pump failure due to high or low pressure

·      Blockage in the lube delivery lines

·      Low lubricant level

MANUAL SUSPENDED SOUND SUPPRESSOR COVER

AIR OPERATED SUSPENDED SOUND COVER

ST-55 SETTLING TANK powder coated with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.

ST-55-SS SETTLING TANK stainless steel with pullout sludge tray in first stage. 55 gal. capacity, 14" height x 36" wide x 36" deep with 1" NPT overflow connection to drain.

WRAP AROUND SETTLING TANK. 30 gallon kidney shaped settling tank that hugs the base of the machine, great for customers with floor space issues.

PLC CONTROL PANEL UP-GRADE:  a ruggedized microcomputer with hardware and software specifically designed to perform industrial control operations.  If you can imagine it, our systems can do it.  Recipe setups for multiple types of parts can be preprogrammed and added to a simple drop down menu on one of our touch screen panels.  Alerts can be set up if more chemical is needed or compound needs to be replaced.  Mechanical warnings like bearing or motor temperatures can be added to monitor for potential breakdowns.  Troubleshooting and even programming can be done via web, direct from our technical support team.

PNEUMATICALLY CONTROLLED PARTS DISCHARGE RAMP (air operated).

PRICE

TIMER CONTROLLED UNLOAD CYCLE WITH GATE CLEARING:  Dual timers control process and unload cycles with automatic pneumatically controlled gate clearing.

LOW PH PACKAGE: All areas in contact with the solution fabricated of stainless steel, including drain lines, screen deck sides, and dam shaft.

SMART PROCESS CONTROLLER: To control input and output of water and

compound thru-out the process cycle

EXTENDED WRAP AROUND SCREEN: Extended screen for extra separation

SCREEN DECK SPRAY SYSTEM rinses parts as they discharge from vibratory machine. Includes metal hood with spray fittings and on-off switch in control panel.

BLOW-OFF /AIR KNIFE: 2T-18-5(DOWN BLAST) The blower delivers 4600 C.F.M./air at 6 inches static pressure.  This unit is powered by a 5 HP 230/460 3 phase motor. Discharge Nozzle Y-4x 4 with adjustable air knife.

ADDITIONAL URETHANE CAST SCREEN

REVERSE SEPARATION screen specially designed for the media to be larger than the parts being finished. In this case parts would fall through the screen and hit a shed sheet to be discharged from the machine, while media would go back to the process channel.

START-UP ASSISTANCE: Giant Finishing will provide start-up assistance at customer facility.  Service includes proper start-up and machine adjustments, operator(s) instruction and preventative maintenance training.
